[Android] firebase SMS 인증 기능, qr코드 생성

졸업프로젝트를 위하여 로그인 서비스를 구현중이다.

오늘의 프로세스는 다음과 같다.

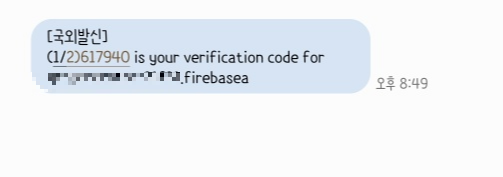

그리고 결과동영상을 먼저 아래에 첨부한다. - 테스트 번호로 테스트해 본 모습





일단 firebase에 연동을 하였다.

아래에서 포스팅한것을 참고하자!

https://sojinlee1004.tistory.com/12

[Android] 안드로이드와 firebase 연동하기

그리고 테스트 번호를 설정해서 테스트 번호를 이용하여 sms인증 기능을 테스트하였다.

전화번호가 유효하지 않으면

android:enabled="false"

로 하여 접근할 수 없게 하였다.



자세하게 기능과 코드를 살펴보면 다음과 같다.



1. 테스트 번호 설정



2. build.gradle (app)

implementation platform('com.google.firebase:firebase-bom:31.4.0')
implementation 'com.google.firebase:firebase-auth'



3. activity_main.xml , activity_main2.xml



<activity_main.xml>

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    tools:context=".MainActivity">


    <EditText
        android:id="@+id/phone_editText"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_marginTop="20dp"
        android:hint="전화번호 입력"
        android:padding="12dp" />


    <Button
        android:id="@+id/phone_btn"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_gravity="center"
        android:layout_marginTop="20dp"
        android:text="인증요청" />

    <EditText
        android:id="@+id/qrcode_editText"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_marginTop="20dp"
        android:hint="인증번호 입력"
        android:padding="12dp"
        android:enabled="false" />

    <Button
        android:id="@+id/qrcode_btn"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_gravity="center"
        android:layout_marginTop="20dp"
        android:text="인증번호 확인"
        android:enabled="false" />


</LinearLayout>

<activity_main2.xml>

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity2">

    <ImageView
        android:id="@+id/qrcode_imageView"
        android:layout_width="400dp"
        android:layout_height="400dp"
        android:adjustViewBounds="true"
        android:scaleType="fitCenter"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toTopOf="parent"
        app:layout_constraintVertical_bias="0.454" />

</androidx.constraintlayout.widget.ConstraintLayout>

4. MainActivity.java , MainActivity2.java



<MainActivity.java>

package com.example.qr_login;

import androidx.annotation.NonNull;
import androidx.appcompat.app.AppCompatActivity;

import android.content.Context;
import android.content.Intent;
import android.graphics.Bitmap;
import android.os.Bundle;
import android.view.View;
import android.view.inputmethod.InputMethodManager;
import android.widget.Button;
import android.widget.EditText;
import android.widget.ImageView;
import android.widget.Toast;

import com.google.android.gms.tasks.OnCompleteListener;
import com.google.android.gms.tasks.Task;
import com.google.firebase.FirebaseException;
import com.google.firebase.FirebaseTooManyRequestsException;
import com.google.firebase.auth.AuthResult;
import com.google.firebase.auth.FirebaseAuth;
import com.google.firebase.auth.FirebaseAuthInvalidCredentialsException;
import com.google.firebase.auth.PhoneAuthCredential;
import com.google.firebase.auth.PhoneAuthOptions;
import com.google.firebase.auth.PhoneAuthProvider;
import com.google.zxing.BarcodeFormat;
import com.google.zxing.MultiFormatWriter;
import com.google.zxing.WriterException;
import com.google.zxing.common.BitMatrix;
import com.journeyapps.barcodescanner.BarcodeEncoder;

import java.util.concurrent.TimeUnit;

public class MainActivity extends AppCompatActivity {
    private EditText phoneEditText, verificationCodeEditText;
    private Button sendVerificationButton, verifyCodeButton;

    private FirebaseAuth mAuth;
    private PhoneAuthProvider.ForceResendingToken mResendToken;

    String mVerificationId;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        phoneEditText = findViewById(R.id.phone_editText);
        verificationCodeEditText = findViewById(R.id.qrcode_editText);
        sendVerificationButton = findViewById(R.id.phone_btn);
        verifyCodeButton = findViewById(R.id.qrcode_btn);

        mAuth = FirebaseAuth.getInstance();

        sendVerificationButton.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                String phoneNumber = "+1" + phoneEditText.getText().toString();
                PhoneAuthProvider.getInstance().verifyPhoneNumber(
                phoneNumber,
                        60,
                        TimeUnit.SECONDS,
                        MainActivity.this,
                        new PhoneAuthProvider.OnVerificationStateChangedCallbacks() {
                            @Override
                            public void onVerificationCompleted(@NonNull PhoneAuthCredential phoneAuthCredential) {
                                signInWithPhoneAuthCredential(phoneAuthCredential);
                            }

                            @Override
                            public void onVerificationFailed(@NonNull FirebaseException e) {
                                if (e instanceof FirebaseAuthInvalidCredentialsException) {
                                    Toast.makeText(MainActivity.this, "Invalid phone number", Toast.LENGTH_SHORT).show();
                                } else if (e instanceof FirebaseTooManyRequestsException) {
                                    Toast.makeText(MainActivity.this, "SMS quota exceeded", Toast.LENGTH_SHORT).show();
                                }
                            }

                            @Override
                            public void onCodeSent(@NonNull String verificationId, @NonNull PhoneAuthProvider.ForceResendingToken token) {
                                mVerificationId = verificationId;
                                mResendToken = token;
                                Toast.makeText(MainActivity.this, "Verification code sent", Toast.LENGTH_SHORT).show();
                                verificationCodeEditText.setEnabled(true); // enabled 를 true로 바꿔준다,
                                verifyCodeButton.setEnabled(true);
                            }
                        });
            }
        });

        verifyCodeButton.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                String verificationCode = verificationCodeEditText.getText().toString();
                PhoneAuthCredential credential = PhoneAuthProvider.getCredential(mVerificationId, verificationCode);
                signInWithPhoneAuthCredential(credential);
            }
        });
    }

    private void signInWithPhoneAuthCredential(PhoneAuthCredential credential) {
        mAuth.signInWithCredential(credential)
                .addOnCompleteListener(this, new OnCompleteListener<AuthResult>() {
                    @Override
                    public void onComplete(@NonNull Task<AuthResult> task) {
                        if (task.isSuccessful()) { // 인증번호를 성공적으로 전송하면
                            String inputText = phoneEditText.getText().toString();
                            String userNumber = "{\"userNumber\":\"" + inputText + "\"}";
                            Intent intent = new Intent(MainActivity.this, MainActivity2.class);
                            intent.putExtra("userNumber", userNumber);
                            startActivity(intent);
                            Toast.makeText(MainActivity.this, "Verification successful", Toast.LENGTH_SHORT).show();
                        } else {
                            if (task.getException() instanceof FirebaseAuthInvalidCredentialsException) {
                                Toast.makeText(MainActivity.this, "Invalid verification code", Toast.LENGTH_SHORT).show();
                            }
                        }
                    }
                });
    }
}

<MainActivity2.java>

package com.example.qr_login;

import androidx.appcompat.app.AppCompatActivity;

import android.graphics.Bitmap;
import android.graphics.Color;
import android.os.Bundle;
import android.widget.ImageView;

import com.google.zxing.BarcodeFormat;
import com.google.zxing.MultiFormatWriter;
import com.google.zxing.common.BitMatrix;

public class MainActivity2 extends AppCompatActivity {
    private ImageView imageView;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main2);

        imageView = findViewById(R.id.qrcode_imageView);

        String userNumber = getIntent().getStringExtra("userNumber");
        Bitmap bitmap = generateQRCode(userNumber);

        imageView.setImageBitmap(bitmap);
    }

    private Bitmap generateQRCode(String userNumber) {

        try {
            BitMatrix bitMatrix = new MultiFormatWriter().encode(userNumber, BarcodeFormat.QR_CODE, 500, 500);
            int width = bitMatrix.getWidth();
            int height = bitMatrix.getHeight();
            Bitmap bitmap = Bitmap.createBitmap(width, height, Bitmap.Config.RGB_565);

            for (int x = 0; x < width; x++) {
                for (int y = 0; y < height; y++) {
                    bitmap.setPixel(x, y, bitMatrix.get(x, y) ? Color.BLACK : Color.WHITE);
                }
            }

            return bitmap;
        } catch (Exception e) {
            e.printStackTrace();
            return null;
        }
    }
}
